AhsayCBSAhsay Go VMware Backup and Restore
Ahsay Go provides a comprehensive backup solution for your VMware virtual machine backup. The VMware VM module of Ahsay Go provides you with a set of tools to protect your virtual machines in VMware environment. This includes a VM backup feature and instant recovery feature (with the use of Run Direct technology), to ensure that mission critical virtual machines are back up and running within minutes of a disaster.
VMware Backup Mode
The backup mode is chosen by Ahsay Go at the start of a backup according to the license key on the VMware host, the operating system of the backup machine where the Ahsay Go is installed, as well as other requirements outlined in the Requirements section.
For VDDK backup mode, Ahsay Go must be installed on a supported Windows operating system platform.
VDDK Backup Mode
For VM on VMware host on Enterprise Standard, Enterprise and Enterprise Plus Edition, backup is performed in VDDK mode. Backup in VDDK mode produces a backup chain that consists of a full VDDK file and a set of VDDK incremental files.
- During the first backup, full files (*.F.vddk) are created in the backup destination.
-
During subsequent backup, Changed Block Tracking (CBT) - a VMware native feature (Changed Block Tracking (CBT) on virtual machines) is employed, to identify disk sectors altered since the last backup. Altered blocks are saved as incremental VDDK file (*.I.vddk) in the backup chain.
During a subsequent backup in VDDK mode, Ahsay Go queries CBT through VADP (vSphere APIs for Data Protection) to request for transmission of all altered blocks since the last backup.
As there is no need to stream the VM files to the Backup Client Computer for delta generation, backup in VDDK mode will greatly enhance the speed of subsequent backups.
| Pros | Faster backup speed for subsequent backups, as a result of backing up only the used size of your VM instead of the entire machine to enhance backup efficiency. This also helps with minimizing the storage size requirement and saving storage cost. Run Direct is supported. |
|---|---|
| Cons | Requires paid license, i.e. VMware Essentials License for usage of vSphere API. Requires VMFS5, VMFS6 or vSAN datastores to support full and incremental backups according to used size of the guest VM. |
In VDDK backup mode, if the guest VM is located on an NFS datastore, the full backup will be performed using provisioned size of the guest VM.
Further to the VMware license requirement described above, there are other requirements for VMware VM backup in VDDK backup mode. Refer to the Requirements section for details.
Features of VDDK Backup mode
| VDDK (CBT) | |
|---|---|
| Full Backup | Use data size of guest |
| Incremental/Differential | Generated by VMware Host using CBT |
| Storage Size | Uses less storage quota |
| Storage Cost | Lower storage cost |
| Backup Speed | Faster backup speed due to smaller data size |
| Run Direct Support | YES |
| Restore from VDDK to VMDK format | YES |
| Granular Restore | YES |
| Ahsay Go on Windows Platform | YES |
| Ahsay Go on Non-Windows Platform | NO |
| Backup and Restore to vSAN Cluster | YES |
Instant VM Restore with Run Direct
Run Direct is a feature that helps reduce disruption and downtime of your production VMs.
Unlike normal VM restore procedure where a VM is extracted from backup files and copied to the production storage which can take hours to complete, restore with Run Direct can instantly power up a VM by running it directly from the backup files in the backup destination and the VM can be put into production.
When a Run Direct restore is performed, the backup destination is mounted as an NFS datastore from the VMware host, where the VM is run directly from the backup files.

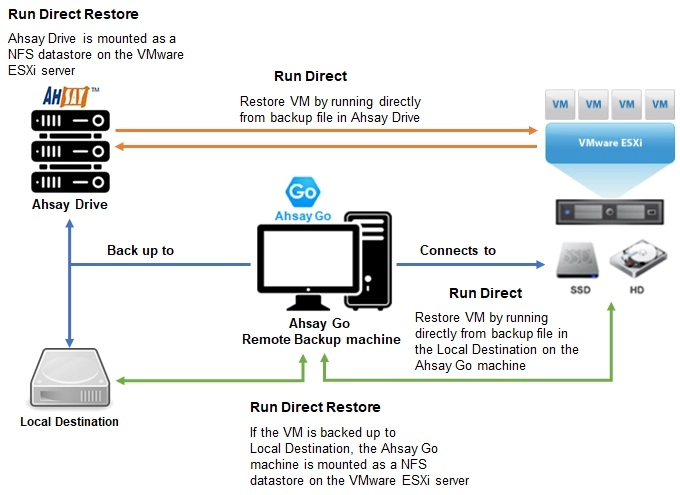

The backup destination can either be the Ahsay Drive or a local drive that can connect with Ahsay Go. Initiating a Run Direct on Ahsay Go requires the connection to route through Ahsay Go (shown in green indication below).
The restored virtual machine, at this stage (e.g. before the restore is finalized) is in a read-only state to preserve its integrity. All changes made to the virtual disks (e.g. operation within the guest virtual machine) are stored separately in transaction logs stored on the NFS datastore or the original datastore, depending on the setting selected. These changes are discarded when Run Direct is stopped, where the restored VM will be removed and all changes will be discarded, or the changes will be consolidated with the original virtual machine data when the restore is finalized.
Run Direct and Non-Run Direct VMware Backup Set Differences
| Run Direct Backup Set | Non-Run Direct Backup Set | |
|---|---|---|
| Encryption | YES | YES |
| Compression | YES | YES |
| VDDK (CBT) | YES | YES |
| Ahsay Drive | YES | YES |
| Local Destination | YES | YES |
| Cloud Destination | NO | YES |
VMware Granular Restore Technology
Granular Restore Technology enables the recovery of individual files from a guest VM without booting up or restoring the whole guest VM first.
Granular restore is one of the available restore options for VMware ESXi/vCenter backup sets. Ahsay Go makes use of Granular Restore technology to enable a file level restore from a virtual disk file (VDDK) of guest VM backup possible. It is particularly useful if you only need to restore individual file(s) from a guest VM which would normally take a long time to restore and then startup before you can gain access to the files on the virtual disks. Granular Restore gives you a fast and convenient way to recover individual files on a guest VM.
During the Granular Restore process, the virtual disks of the guest VM can be mounted on the Windows machine as a local drive. This will allow the individual files on the virtual disks to be viewed via the file explorer within Ahsay Go or from the Windows File Explorer on the Windows machine you are performing the restore on, without having to restore the entire virtual machine. Granular Restore can only mount virtual disks if the guest VM is running on a Windows Platform and it is supported for all backup destinations, i.e. Ahsay Drive, Cloud storage, or Local/Network drives. The mounting of Linux/Unix file systems from virtual disk file is currently not available due to limitations of the file system drivers.

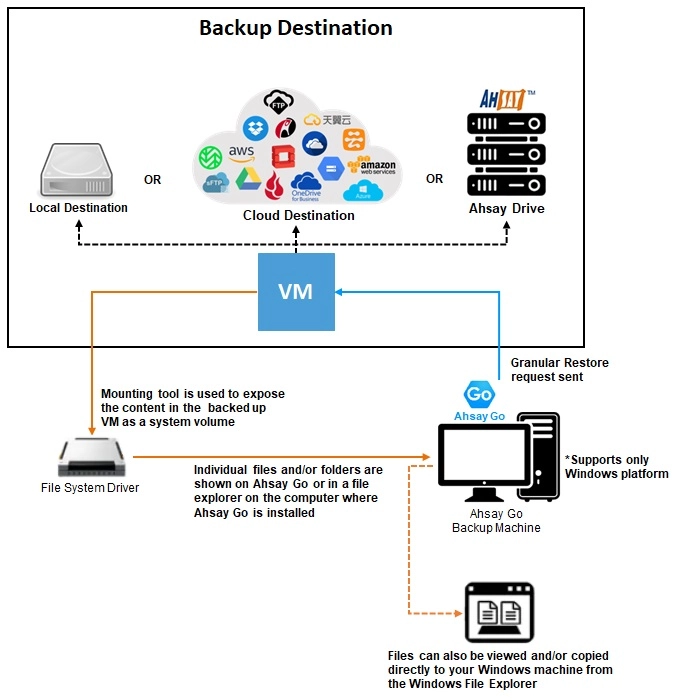

How Does Granular Restore Work?
Benefits of Using Granular Restore
Comparison between Granular Restore and Traditional Restore:
| Granular Restore | |
|---|---|
| Introduction | |
| Granular restore allows you to quickly mount virtual disk(s) directly from the backup file of a guest VM, so that individual files from virtual disk(s) can be exposed via the file explorer on Ahsay Go, or to be copied from the file explorer on to a 64 bit Windows machine you are performing the restore. | |
| Pros | |
| Restore of Entire Guest VM Not Required | Compared to a traditional restore where you have to restore the entire guest VM first, before you can access any individual files/folders, granular restore allows you to view and download individual files, without having to restore the entire guest VM first. |
| Ability to Restore Selected Files | In some cases, you may only need to restore a few individual file(s) from the guest VM, therefore, granular restore gives you a fast, convenient, and flexible tool to restore selected file(s) from a guest VM quickly. |
| Only One Backup Set Required |
With traditional restore methods, if you wish to restore individual file(s) from a guest VM, you will have to create two different backup sets; a VMware guest VM backup set and a separate file backup set for the file(s) you wish to restore. You will require an additional Ahsay Go installation on the guest VM environment, with Granular Restore feature, only one backup set is required.
|
| Cons | |
| No Encryption and Compression | To ensure optimal restore performance, the backup of the guest VM will NOT be encrypted and compressed, therefore, you may have to take this factor in consideration when using this restore method. |
| Traditional Restore | |
|---|---|
| Introduction | |
| The traditional restore method for guest VMs, restores the entire backup files to either the original VM location or another standby location. The files or data on the guest VM can only be accessed once the guest VM has been fully recovered and booted up. | |
| Pros | |
| Backup with Compression and Encryption | Guest VM is encrypted and compressed, therefore is in smaller file size, and encrypted before being uploaded to the backup destination. |
| Cons | |
| Slower Recovery | As the entire guest VM has to be restored before you can access any of its file(s) or data, the restore time could be long if the guest VM size is large. |
| Two Backup Sets Required | If you only wish to restore individual files from the VM, two separate backup sets are required, one for the VM image and the other for the individual files. |
